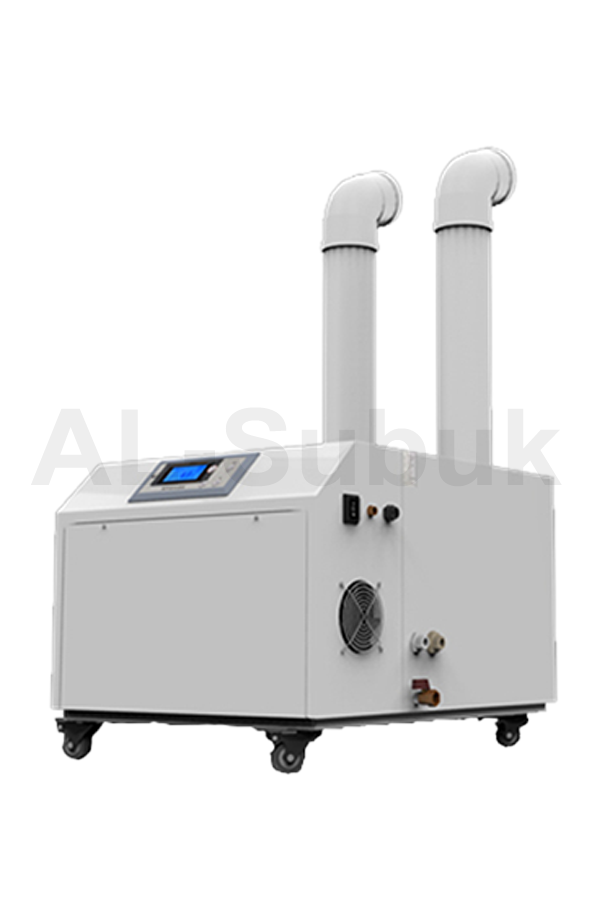

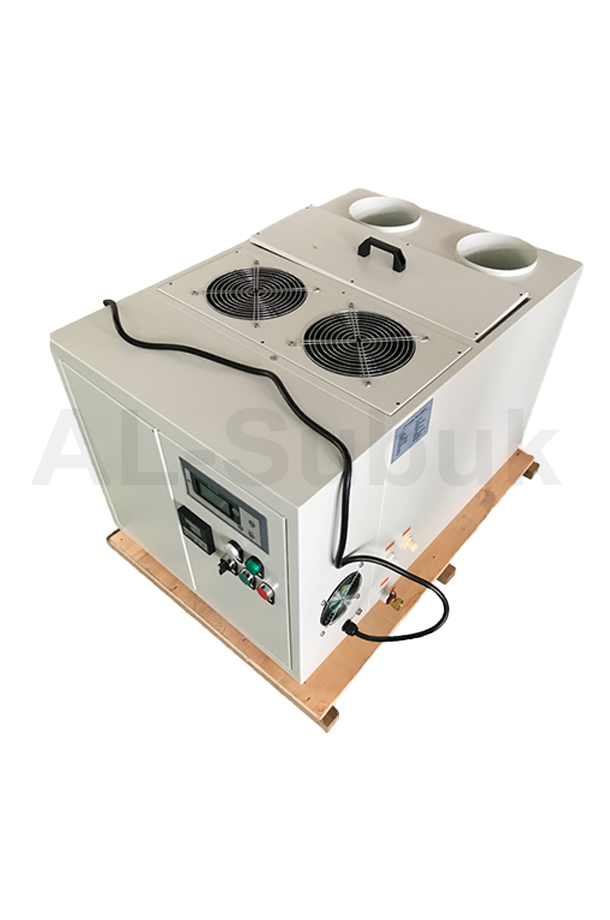

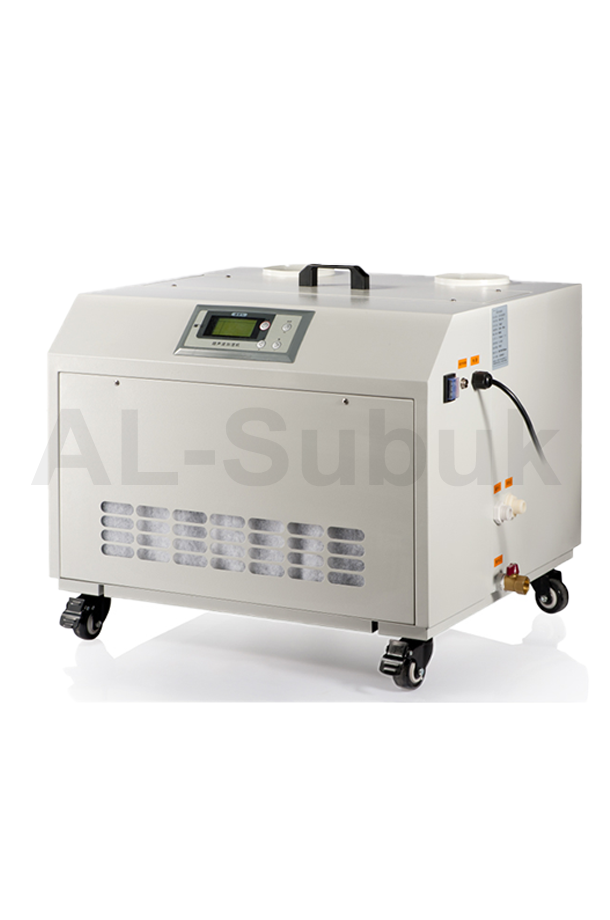

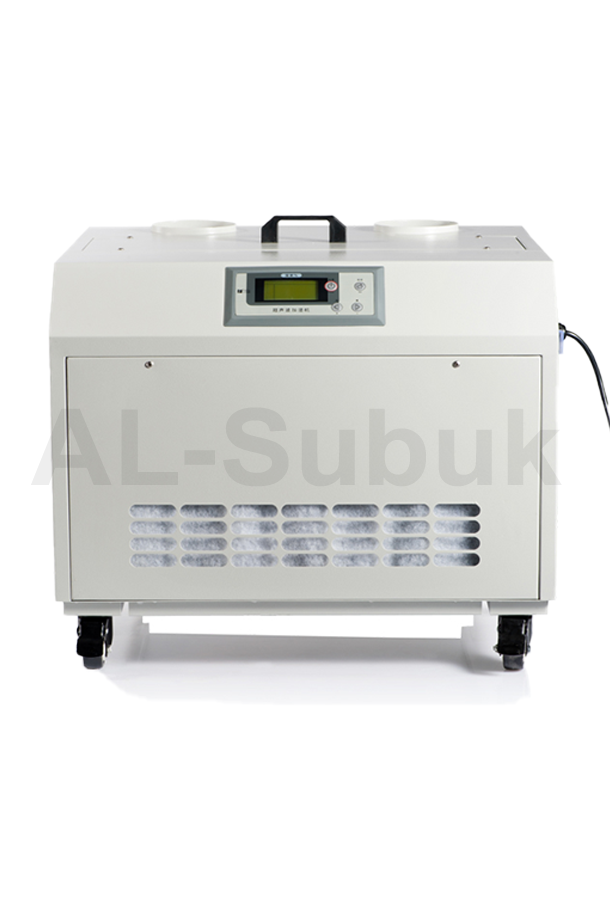

Ultrasonic humidifier JDH-09Z/JDH-12Z

About

Features.

Our ultrasonic humidifiers are controlled automatically.

1 -We can set RH to be 80% for example. when the humidity

reaches 80% our machine will stop working when the humidity can

not reach 80% the humidifier will start to work automatically.

2 - It can be controlled by time From 1-24 hours. when

you set 12 hours for example. The machine will stop

working after 12 hours.

Digital humidity controller can be randomly set from

1%-99%. its control precision reaches +- 5%.

The fog diameter is 1-10µm.

It is easy to move with 4 universal castors.

It is stainless steel body nice looking and long time service life.


Technical specifications

ModelJDH-09ZJDH-12Z
Capacity9L/hr12L/hr
Voltage220V50Hz220V50Hz
Power input(w)9001200
Air volume(m3/h)450450
Fog outlet(mm/pc)110/2110/2
Work Temp(°C)0-400-40
N.W(kg)3539
Machine size(mm)640*420*500640*420*500
Use area(m2)100-150150-200
Control wayMicrocomputer controlling Microcomputer controlling
ModelJDH-21ZJDH-24ZJDH-30ZJDH-36ZJDH-42ZJDH-48Z
Capacity21L/hr24L/hr30L/hr36L/hr42L/hr48L/hr
Voltage220V50Hz380V50Hz380V50Hz380V50Hz380V50Hz
380V50Hz
Power input(w)21002500310036004300W4800W
Air volume(m3/h)550650650850900900
Fog outlet(mm/pc)110/3110/3160/2160/2160/2 160/2
Work Temp(°C)0-400-400-400-400-400-40
N.W(kg)4852657080100
Machine size(mm)700*600*500700*650*640700*650*640700*650*640860*820*850860*820*850
Use area(m2)300-350350-400450-550600-700700-850850-1000
Control wayMicrocomputer controlling Microcomputer controlling Microcomputer controlling Microcomputer controlling Microcomputer controlling Microcomputer controlling
