ADVANTAGE:

• Low noise low energy consumption every day only 2 kwh;

• USA CURTIS controller multiple automatic protection.

• Small body suitable for narrow space;

• Sealed batteries free of narrow space;

• Stepless speed control system easy to operate;

• Auto lifting limits safety energy saving.

• Emergency reversing device/Emergency brake switch

	Mode		AEJE115
FEATURE	Load capacity	kg	1500
FEATURE	Load center	mm	600
FEATURE	Wheel base	mm	1234
FEATURE	Operating type		Walke
WHEELS	Wheel type		PU
WHEELS	wheel quantity Driving wheel/balance wheel bearing wheel	mm	1/2/4
WHEELS	Driving wheel size	mm	C252x67
WHEELS	Balance wheel size	mm	C80x58(Double Wheels)

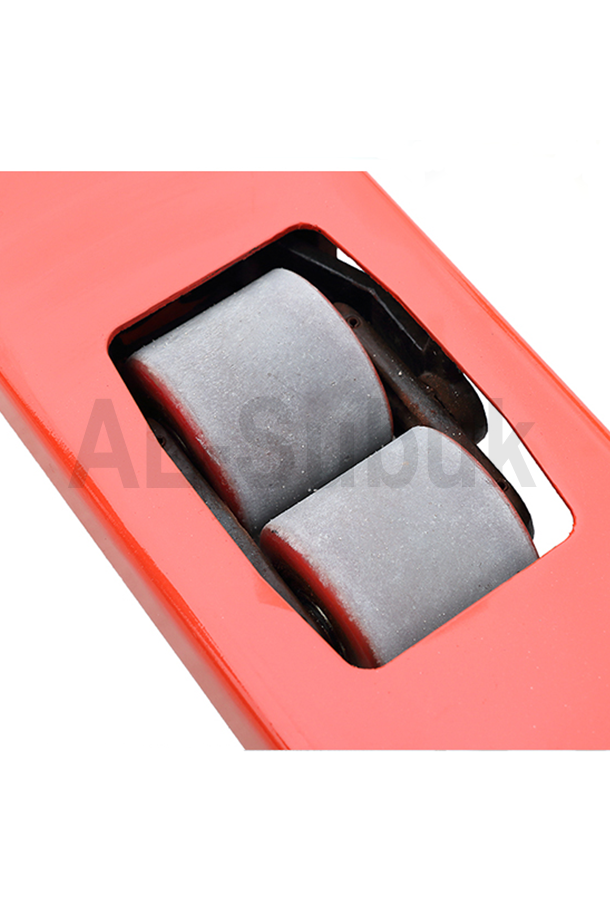

WHEELS	Bearing wheel size	mm	C99.5x40
DEMENSION	Min.fork lowerd height	mm	85
DEMENSION	Max.fork lifting height	mm	205
DEMENSION	Max.lifing height	mm	120
DEMENSION	Overall fork height	mm	540/600/685
DEMENSION	Fork length	mm	1150/1200
DEMENSION	Fork width	mm	160
DEMENSION	Fork thickness	mm	44
DEMENSION	Overall length	mm	1630
DEMENSION	Overall width	mm	725
DEMENSION	Overall height(with handle)	mm	1250
DEMENSION	Overall height(without handle	mm	685
DEMENSION	min.turning radius	mm	1400
DEMENSION	(800x1200,1200)min.aisle width for pallets 800x1200	mm	1817
DEMENSION	(1000x1200,1200)min.aisle width for pallets 1000x1200	mm	1858
PERFORMANCE	Travel speed,laden/unladen	km/h	3.5/4
PERFORMANCE	Lift speed,laden unladen	mm/s	30/45
PERFORMANCE	Travel speed laden/unladen	mm/s	45/30
PERFORMANCE	Gradeability laden/unladen	%	57
ELECTRIC CONFIGURATION	Drive motor	kw	DC 0.75
ELECTRIC CONFIGURATION	Lift motor	kw	DC 0.8
ELECTRIC CONFIGURATION	Steering motor	kw	/
ELECTRIC CONFIGURATION	Battery voltage/capacity	V/Ah	24/70
ELECTRIC CONFIGURATION	Brake		Electromagnetic/ Regenerative
ELECTRIC CONFIGURATION	Controller		CURTIS(USA)
WEIGHT	Battery weight	kg	48
WEIGHT	Service weight with battery	kg	310
